POWERGRID 10
Powergrid 10
The foundation of your 500 Series workflow.

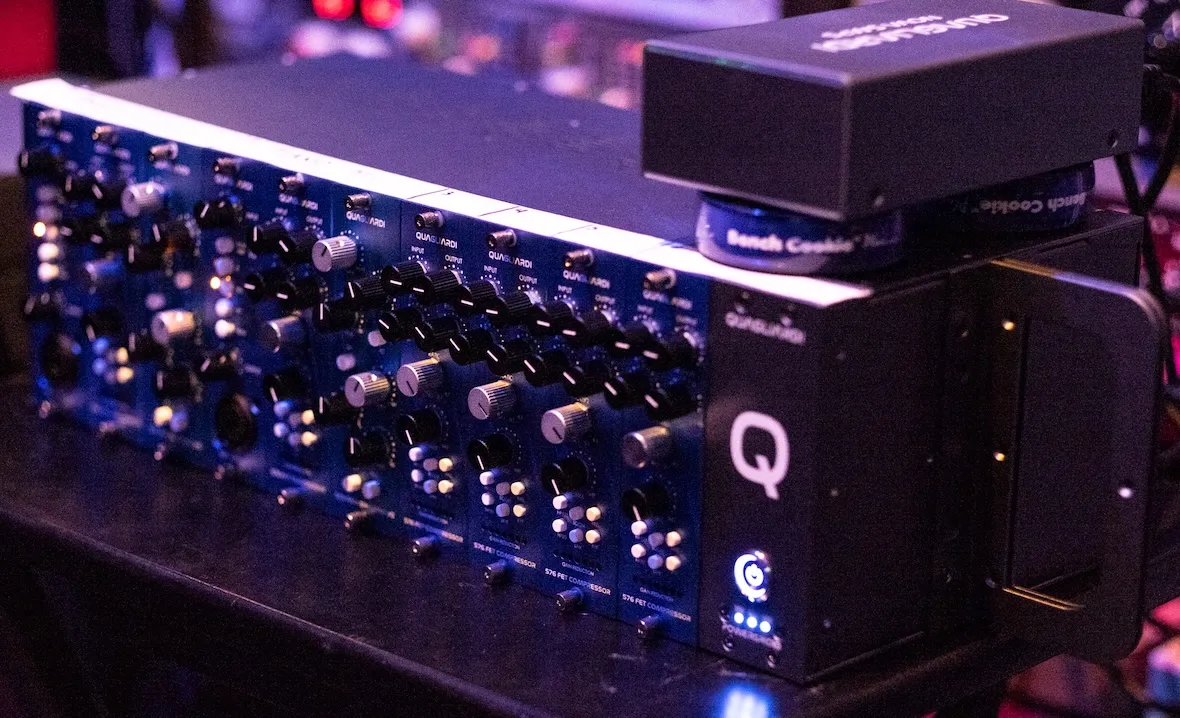

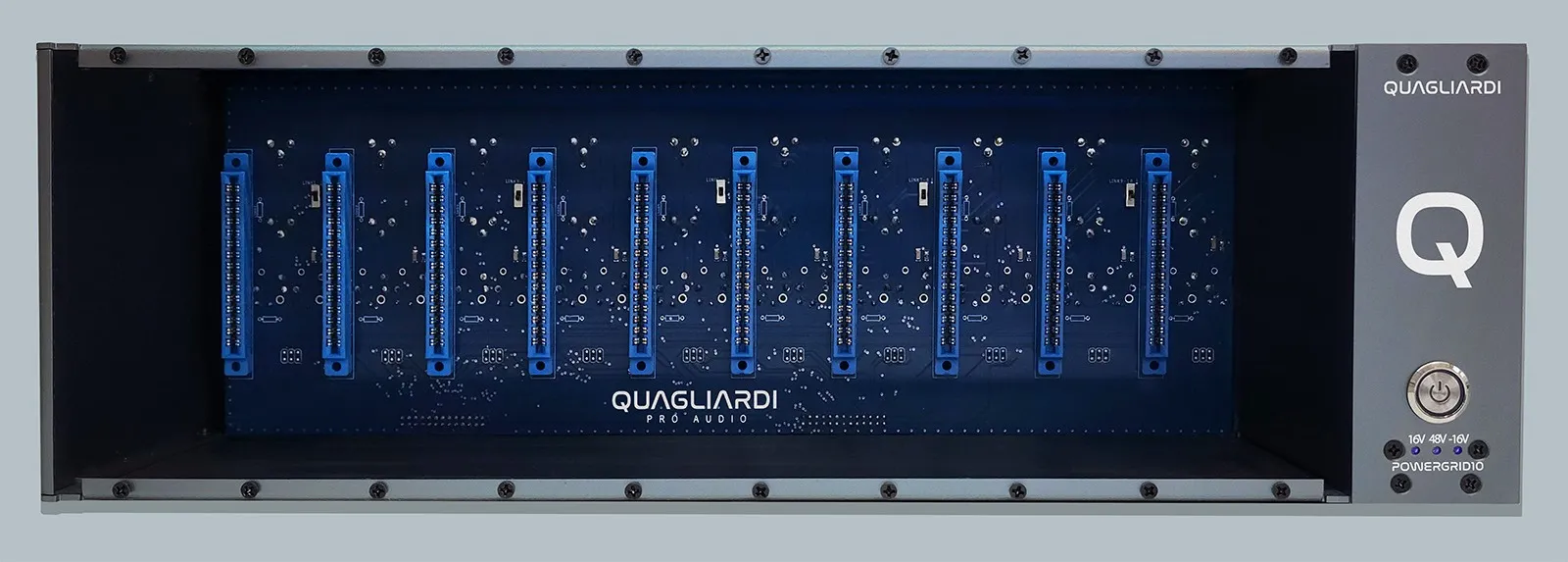

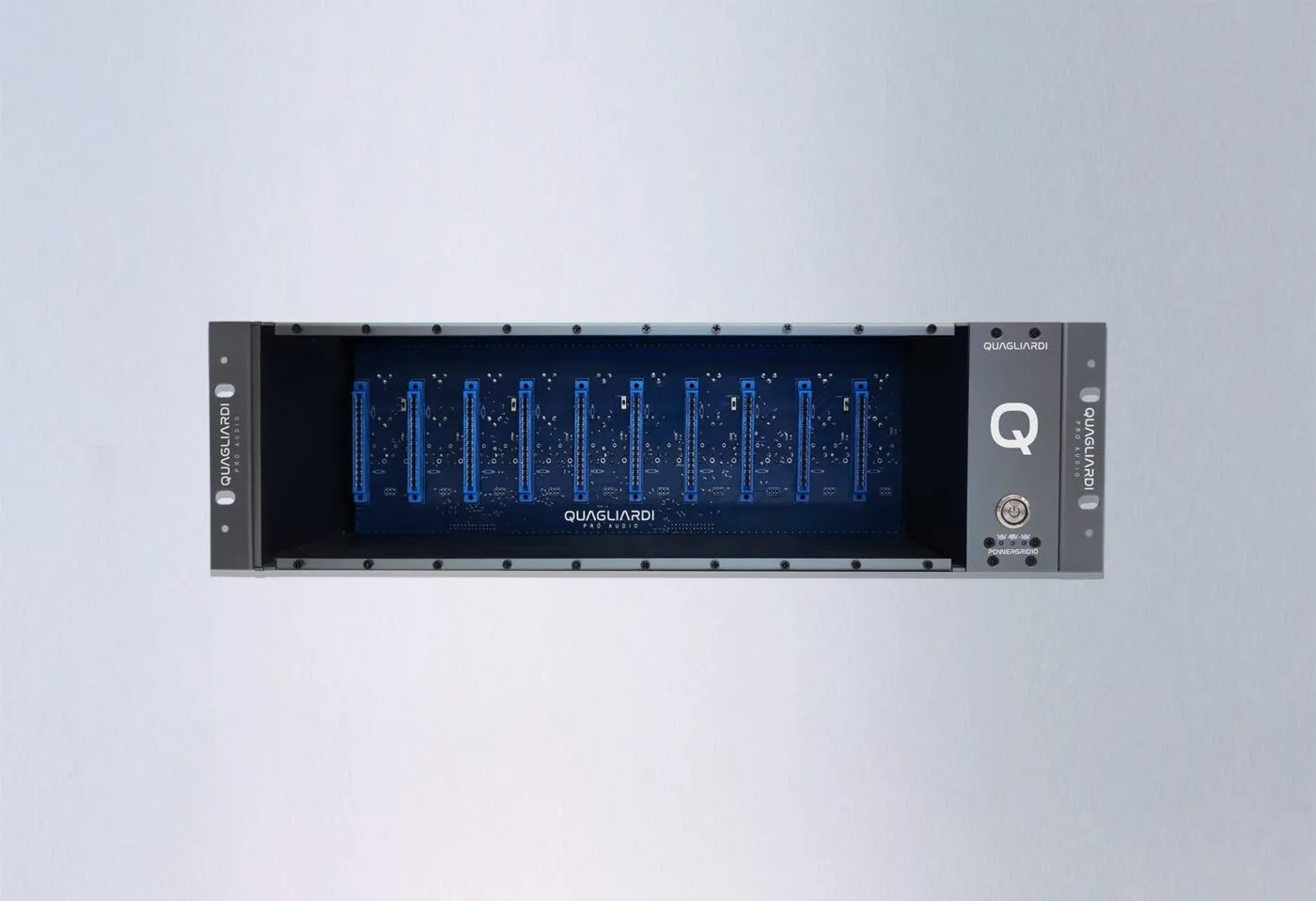

The Powergrid 10 is a 10-slot chassis for series 500 equipment. It is equipped with an external switching power supply capable of delivering up to 2000mA of current per voltage rail.
M.S.R.P.
$999.00
Get it from our distributors

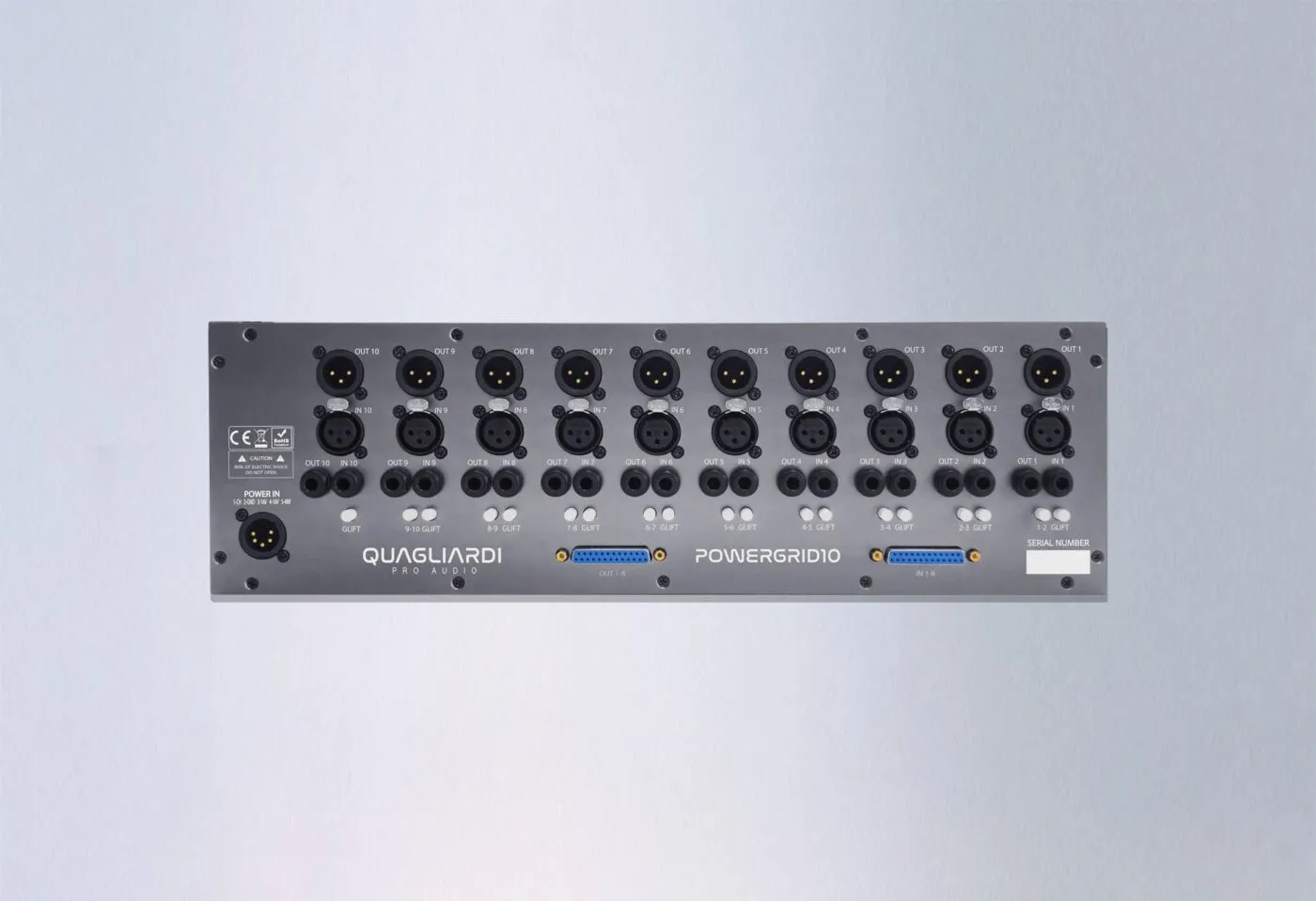

On its rear panel, the Powergrid 10 features accessible XLR and DB25 inputs and outputs, as well as 'ground lift' controls to prevent ground loops and 'feed' controls for easily daisy-chaining modules in adjacent slots to create channel strips without the need for additional cables.
Technical Specifications
Connections
Ten independent 500 Series slots, each featuring XLR and ¼-inch TRS input and output connectors
DB25 inputs and outputs available for channels 1–8
External Power Supply Capacity
±16 V DC rails: 2,000 mA total
+48 V phantom power: 200 mA
Dimensions
14 × 19 × 44 cm
5.5 × 7.5 × 17.3 in
Weight
2.5 kg
5.5 lb
