Powergrid Duo
Two channels. One flexible signal flow.

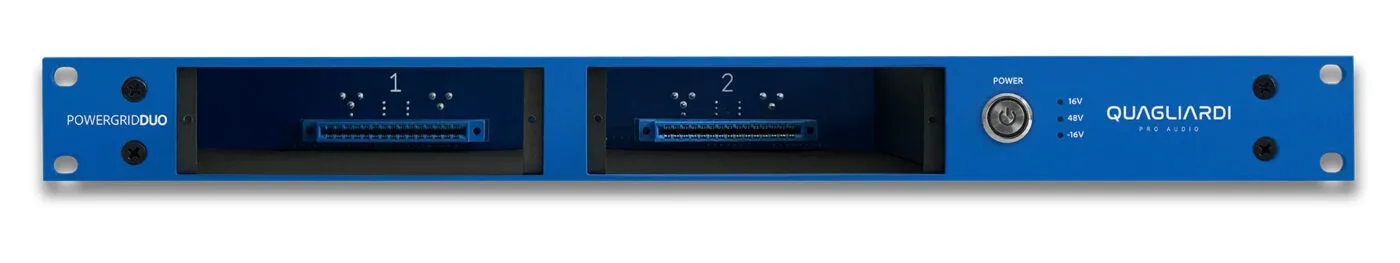

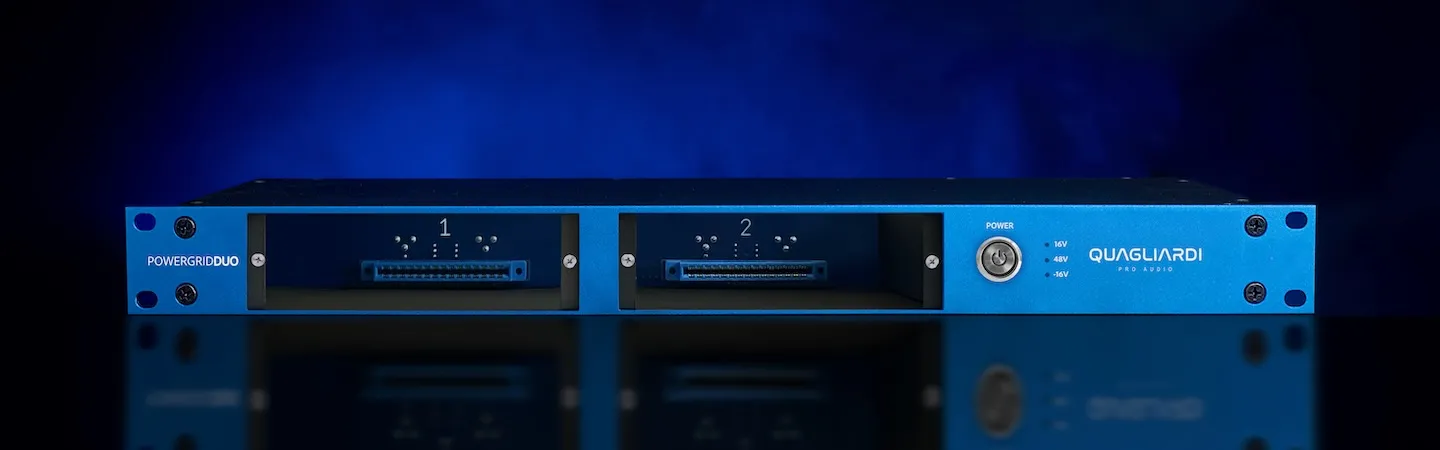

The Powergrid Duo is a horizontal 500 Series chassis designed to house and provide stable power to two modules.
M.S.R.P.
$299.00
Get it from our distributors
The Powergrid Duo boasts two recessed slots, supports all standard 500 Series modules, and delivers up to 300mA of current per voltage rail.

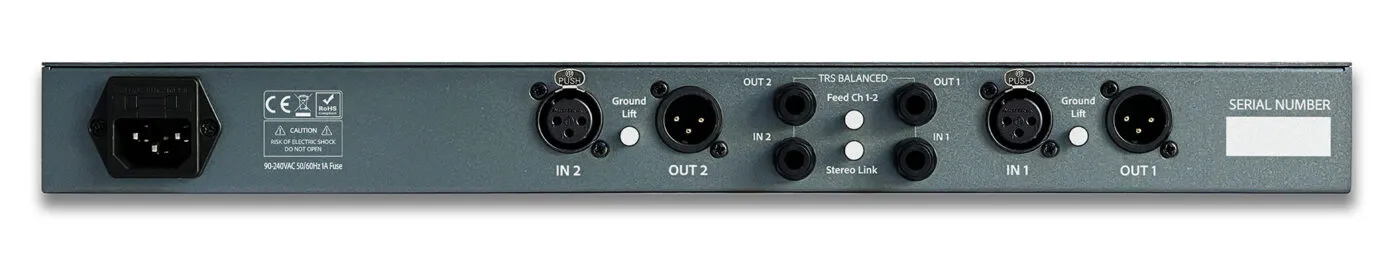

It has a flexible routing provided by the Powergrid Duo rear-panel Stereo Link switch, and its per-slot Ground Lift switches make short work of any irritating hum that dares rear its ugly head.
Are you searching for a seamless way to integrate your 500 Series modules with your other rackmount gear? If so, you’ll be duly impressed by the look and performance of the Powergrid Duo.
Technical Specifications
Connections
Two independent channels, each featuring XLR and ¼-inch TRS input and output connectors for its corresponding 500 Series slot
Power Supply Capacity
±16 V DC: 2 A
+48 V phantom power: 200 mA
Dimensions
48.3 × 20 × 4 cm
19 × 7.9 × 1.6 in
Weight
3 kg
6.6 lb
